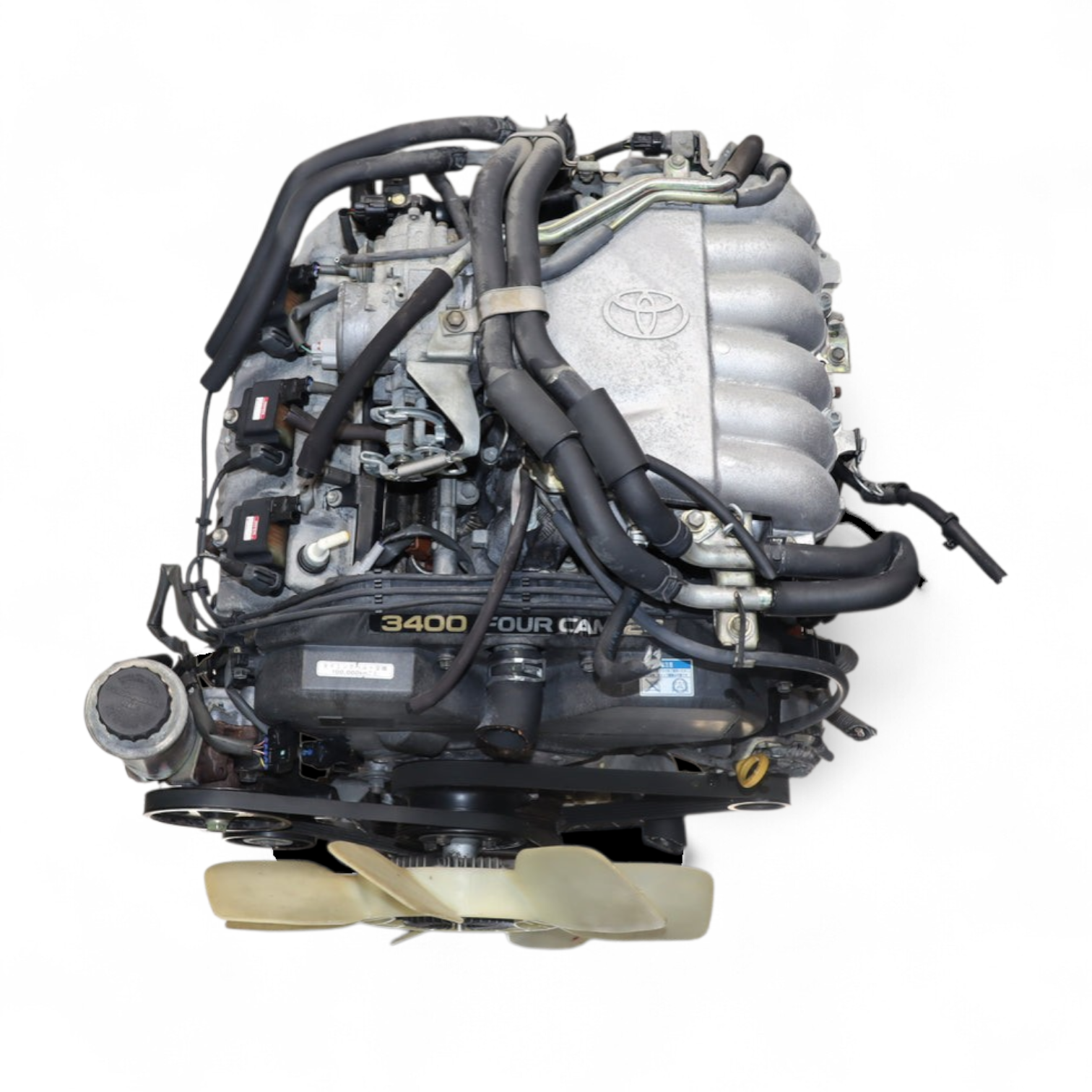

Toyota Prado 3.4 V6 5VZ Engine

The Toyota 5VZ-FE is a legendary 3.4-liter (often referred to as the 3.4L or 3.5L, though displacement is exactly 3,378cc) V6 engine that powered the Toyota Prado 90 and 120 series. Renowned for its “over-engineered” build quality, it is widely considered one of the most reliable V6 engines Toyota has ever produced, striking a perfect balance between mechanical simplicity and rugged off-road performance. Key Specifications & Features Type: 3.4L V6, 24-Valve (60-degree angle) Valvetrain: Double Overhead Cam (DOHC) Fuel System: Multi-Point Sequential Fuel Injection Block Material: Cast iron block for maximum durability with aluminum alloy heads. Power Output: Approximately 140 kW (188 hp) at 4,800 rpm. Torque: A smooth 298 Nm at 3,600 rpm. Performance Highlights Low-End Torque: Unlike high-revving modern V6s, the 5VZ-FE was tuned for a flat torque curve, making it exceptional for low-range crawling, sand driving, and towing . Bulletproof Reliability: This engine is famous for its longevity. It is a non-interference engine, meaning that if the timing belt snaps, the pistons and valves typically won’t collide, preventing catastrophic failure. Heat Management: Designed for harsh environments, it features a large cooling capacity and a robust design that handles the high thermal loads of African and Australian off-roading. Ease of Repair: With a straightforward electronic system and ample space in the Prado engine bay, it remains a favorite for overlanders who need an engine that can be serviced in remote areas. Common Applications The 5VZ-FE is the heart of several “indestructible” Toyota legends: Toyota Prado 90 Series (VZJ90 / VZJ95). Toyota Prado 120 Series (Early models). Toyota Hilux (Generation 6 “Tiger” and early 2000s models). Toyota Tacoma and 4Runner (International markets).
